1. Product Introduction

1.Water Quality Buoy Monitoring StationSFAAn unmanned data collection system that integrates data collection, storage, transmission, and management. It is used in hydrological automatic monitoring systems for the purpose of industrial and agricultural production, tourism, urban environmental monitoring, geological disasters, flood control, water supply dispatch, and power station reservoir water management; The powerful superior software can remotely observe real-time hydrological and rainfall information, with database, report, download and other functions, and users can also use this function-rich meteorological software to further process and analyze the recorded data.

2. The SFA06 floating buoy is composed of six parts: water quality sensor (water temperature, conductivity, PH, dissolved oxygen, ammonia nitrogen, turbidity), data logger, communication system, power supply system, overall support frame, and water quality monitoring platform. At the same time, it can be extended to include multiple water quality elements such as COD, chlorophyll, and suspended matter. The data logger has data acquisition, real-time clock, data定時(shí) storage, parameter setting, and standard 2G/4G (GPRS) communication functions.

Second, product features

1. Easy deployment: All types of probes are highly integrated, easy to install; free cloud platform service is provided, and the system is quickly launched;

2. Easy maintenance: The equipment can operate independently after installation, without the need for manual supervision, and can also be monitored remotely to ensure the normal operation of the equipment;

3. Easy to expand: all sensor probes use a unified communication protocol, which can quickly connect to the original equipment and quickly expand the monitoring parameters;

4. Low power consumption: The device can achieve low power consumption state, long-term operation, and increase the convenience of device use;

5. Real-time: Data monitored by the device is transmitted to the cloud platform in real-time, enhancing the timeliness of environmental data feedback.

Three, Technical Parameters

1. Subject parameters

2.Main parameters of the sensor, which can be optionally equipped

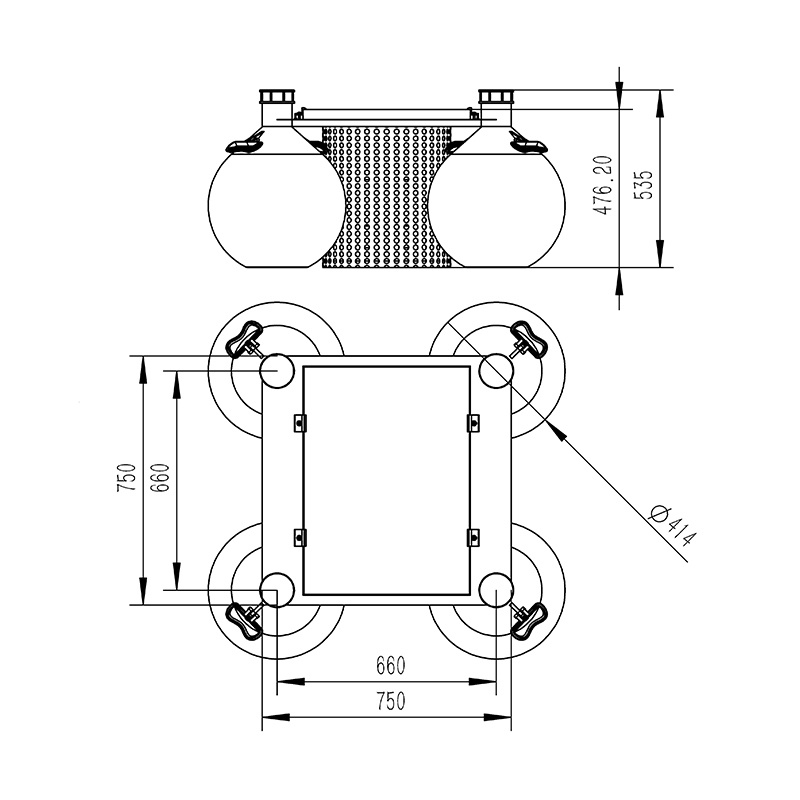

IV. Product Size Chart

5. Equipment installation requirements

1. Stay away from high-power radio transmitting sources

2. Stay away from high-voltage transmission lines and microwave radio transmission channels

3. As close as possible to the data transmission network

4. Stay away from strong electromagnetic interference

Six, Cloud platform introduction

1. CS architecture software platform, supports mobile phones, PC browsers to directly observe. No need to install additional software.

2. Support multiple accounts, multiple devices login

3. Support real-time data display and historical data display dashboard

4. Cloud server. Cloud data storage, stable and reliable, easy to expand, load balancing.

5. Support SMS alarm and threshold setting

6. Support for map display, view device information.

7. Support for data curve analysis

8. Support for data export in table format

9. Support data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.

10. Support for data post-processing functions

11. Support for external JavaScript scripts
